1.Product Descriptions :
| Characteristics: | Optical glass |
| Materials: | Ultra-clear glass |
| Chemical composition | Soda-lime silicate glass |
| Peak Transmittance: | >91.5% , >99.5% with AR coating |
| Shape: | Square, round and customized |
| Dimension: | 21.1*10mm or customized |
| Thickness: | 1.0mm or customized |
| Remark: | Can do customization per requirement |

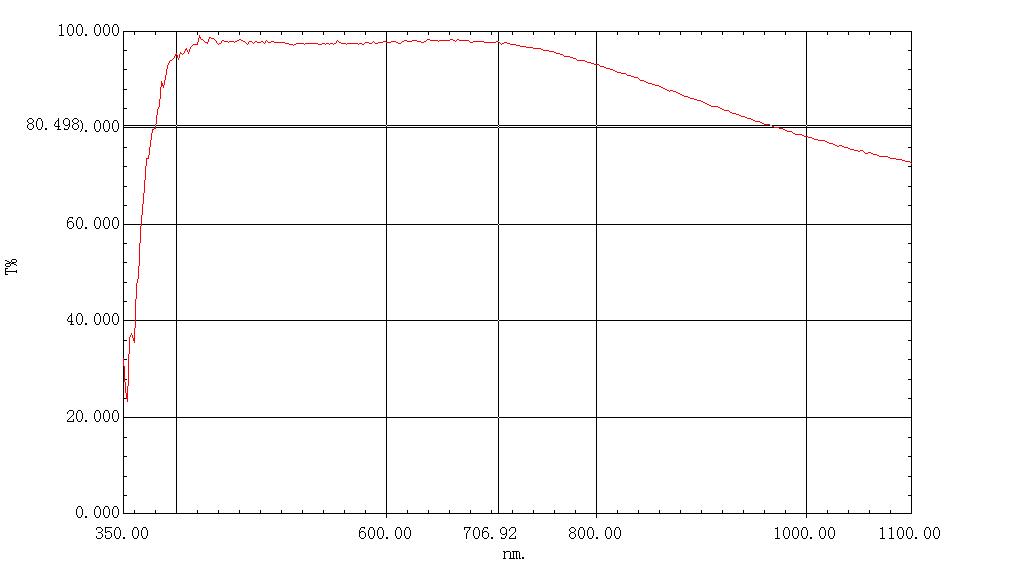

2. Measured Spectral curve
 |
Picture 1: Optical glass with dual AR coating 400-700nm |
- Advantages: It reaches high light transmittance of over 91.5% and exhibits a nearly colorless transparency. This glass supports the same advanced processing techniques as high-quality float glass, offering the highest cost-effectiveness among comparable materials.Disadvantages: Its high thermal conductivity results in poor thermal performance, and its hardness is only average. When used in building envelopes, it requires additional energy-saving design measures. Furthermore, its price exceeds that of ordinary glass.
Various types of glass have different characteristics. Based on the specific requirements of the customer’s product, the most cost-effective raw material coating can be selected. Optical glass substrate in stock from Liyuan Optoelectronics:
- Ultra-clear glass, quartz glass, Schott glass, Corning glass, K9 glass, sapphire, black glass, red glass, blue glass, etc.
- The thickness of the raw materials can be selected: 0.21, 0.3, 0.55, 0.7, 1.0, 1.1, 2.0, 3.0, etc.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Fitlers, IR cut-off Filters, Longpass & Short Filters,Notch Filters, ND filters, Star filters and Optical sapphire block.
