1.Product Descriptions:
| Characteristics: | Optical glass |
| Type: | Optical glass |
| Materials: | Ultra-clear glass |
| Chemical composition: | Soda-lime silicate glass |
| Peak Transmittance: | >91.5% , >99.5% with AR coating |
| Cut-off depth: | OD2-OD3 |
| Surface Quality: | 60/40 scratch-dig |
| Shape: | Square, round and customized |
| Color: | Transparent |
| Dimension: | Diameter 7.0mm or customized |
| Thickness: | 1.0mm or customized |
| Remark: Can do customization per requirement *Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm **Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc. | |

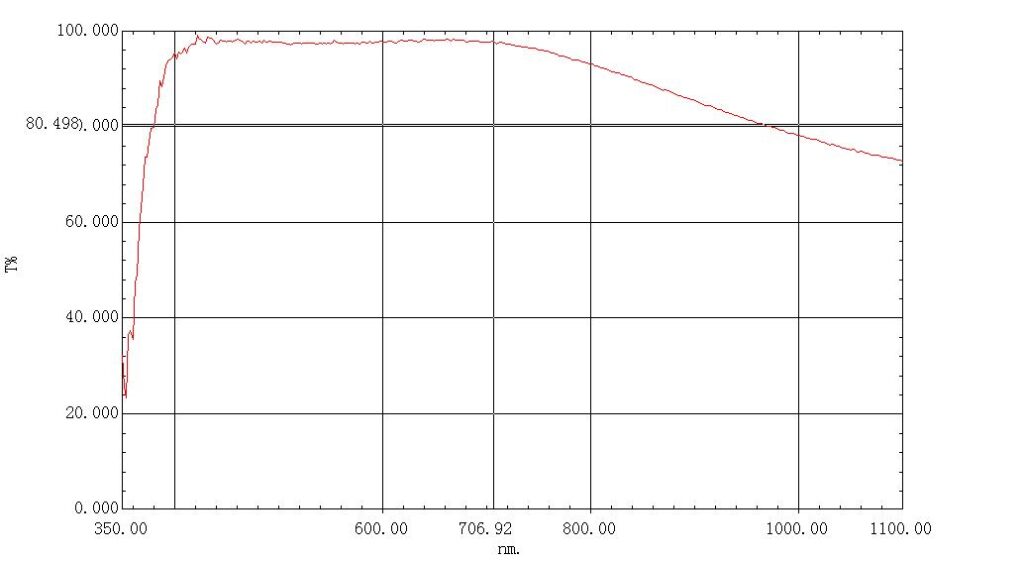

2. Measured Spectral curve
 |
Picture 1: Optical glass with dual AR coating 400-700nm |
4.What is the typically application of AR+AF Optical glass?
AR+AF optical glass is typically applied in consumer electronics, automotive displays, medical equipment, industrial control panels, solar panels, ATMs, museum cases, and optical lenses where both high light transmission and smudge resistance are required.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including:
AR+AF Coating Filter, Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters, Optical sapphire block, Optical sapphire cover, Polarizer and Colored Filter.
