Product Descriptions :
| Characteristics: | Optical Glass |
| Substrates: | Ultra-Clear Glass, Low-Iron Glass |
| Peak Transmittance: | >90% ( raw material) |
| Peak Transmittance(AR coating): | 99.5% (AR coating) |
| Dimension: | Specified |
| Thickness: | Specified |
| Surface quality: | 60-40 |
| Remark: | Support customized for different size and thickness: (1) Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm (2) Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc (3) Single side or Double side AR coating, range from 380nm -1100nm or 400-700nm. |
Optical Ultra Clear Glass materials:
 |
Picture 1: Ultra-Clear Glass raw material |

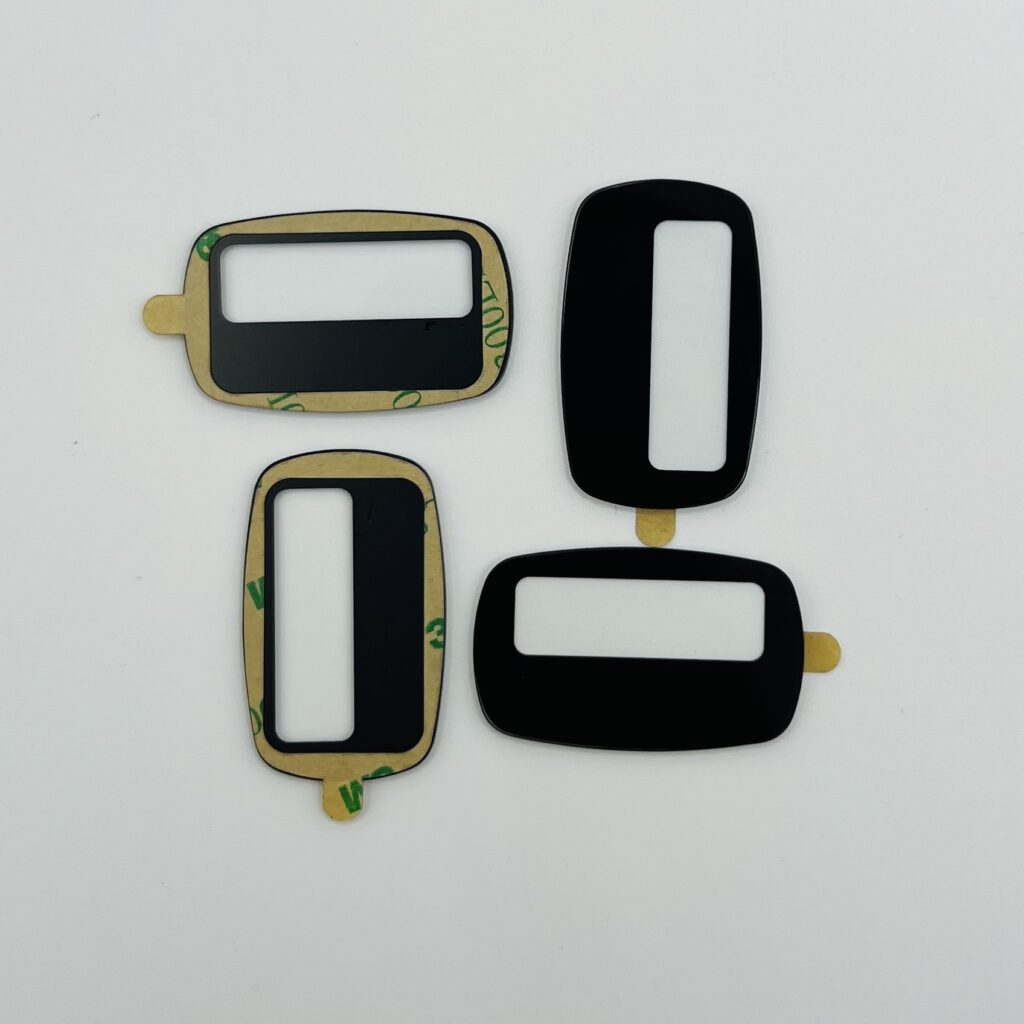

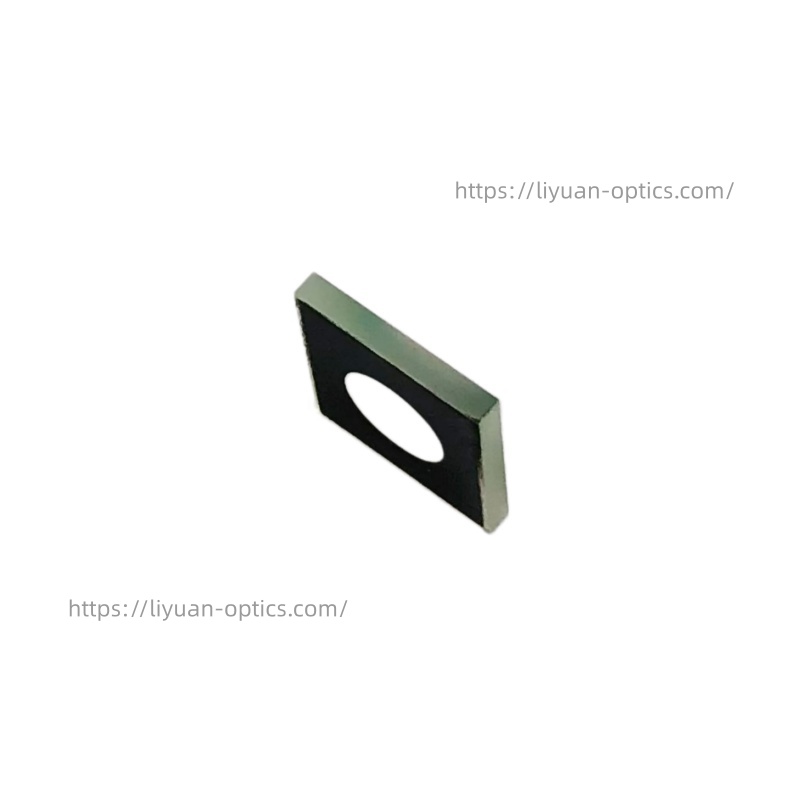

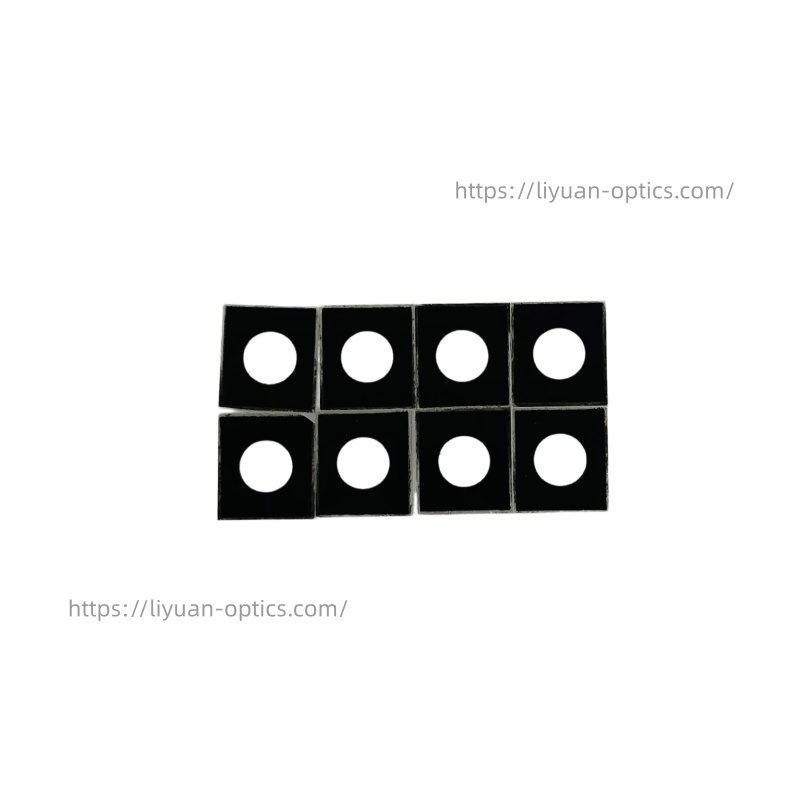

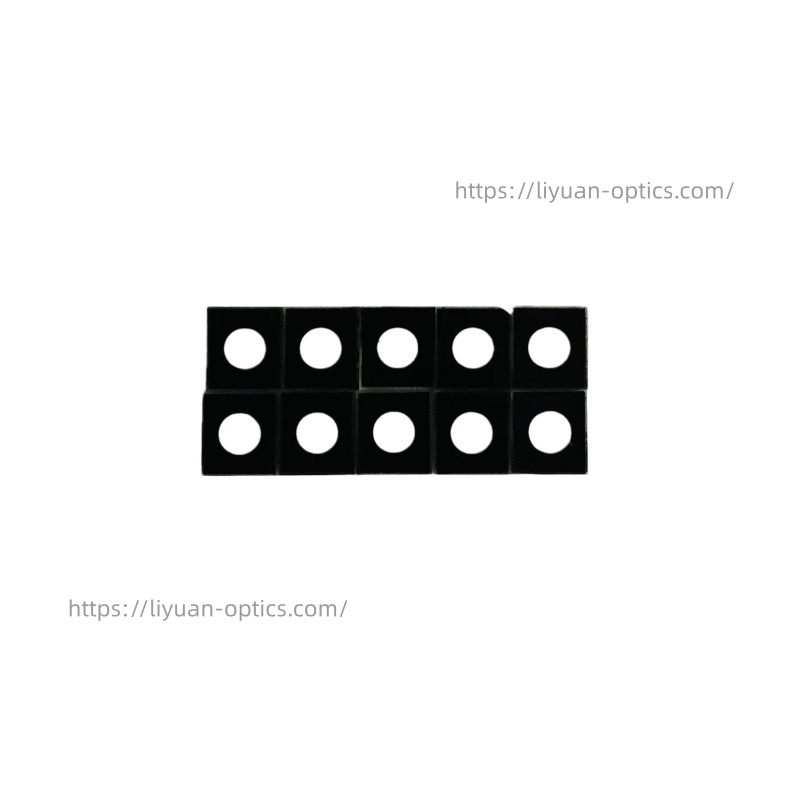

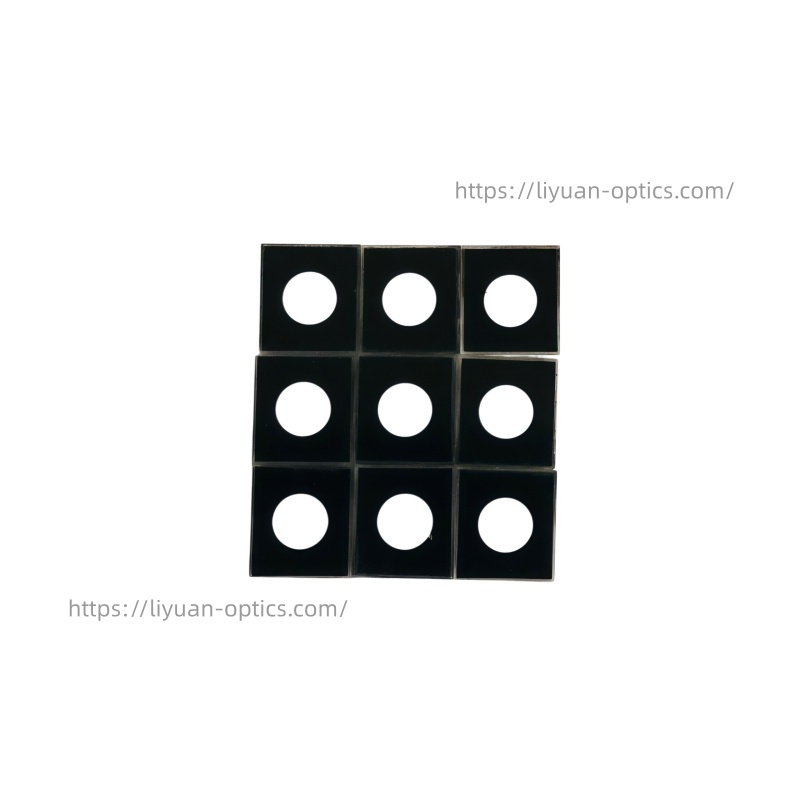

What is Screen Printed Protective Window Glass?
Screen-printed protective window glass, also called silk-screened cover glass, is a specialized glass component. In fact, it integrates optical protection, durability, and customized functional or visual design through screen-printing technology.
What’s key characteristics for Screen Printed Protective Window Glass?
Screen printed protective window glass refers to glass panels, typically for appliances, electronics, or architectural use. Manufacturers or the screen printing process apply a durable, decorative, and functional design to these panels.
Its key characteristics feature durable and abrasion-resistant ink, provide precise and opaque graphics, offer environmental protection, enable aesthetic integration and branding, allow for functional masking, support customization and design flexibility, contribute to enhanced safety, and can include electrical functionality.
What’s Typical application for Screen Printed Protective Window Glass?
Screen Printed Protective Window Glass finds wide application across numerous fields. Specifically, it serves in industrial control instruments, medical equipment, smart home appliances, automotive dashboard panels, outdoor monitoring devices, wearable electronic screens, and various display touch modules.
What is the role of AR coating on Screen Printed Protective Window Glass?
Applying AR coating to Screen Printed Protective Window Glass reduces reflection and boosts transmission. This minimizes glare and ghosting, enhances clarity under bright light, improves touch sensitivity and optical bonding, and preserves printed patterns. Consequently, AR-coated glass delivers superior optical performance across industrial, medical, automotive, outdoor, and smart home applications.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift.
Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters,Notch Filters, ND filters, Star filters and Optical sapphire block.
