Product Descriptions:
| Characteristics: | 750nm Bandpass Filter |
| Type: | Interference type Filter |
| Central Wavelength (CWL): | 750+-5nm |
| Full Width at Half Maximum(FWHM): | 40/45nm |
| Peak Transmittance(%) : | ≥92% |
| Cut-off depth: | OD2 |
| Shape: | Round, Square or customized. |
| Color: | Silver |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm |
| Thickness(mm): | 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Support customized for wavelength from 200-2000nm. | |
Spectral measurement graph examples
 |

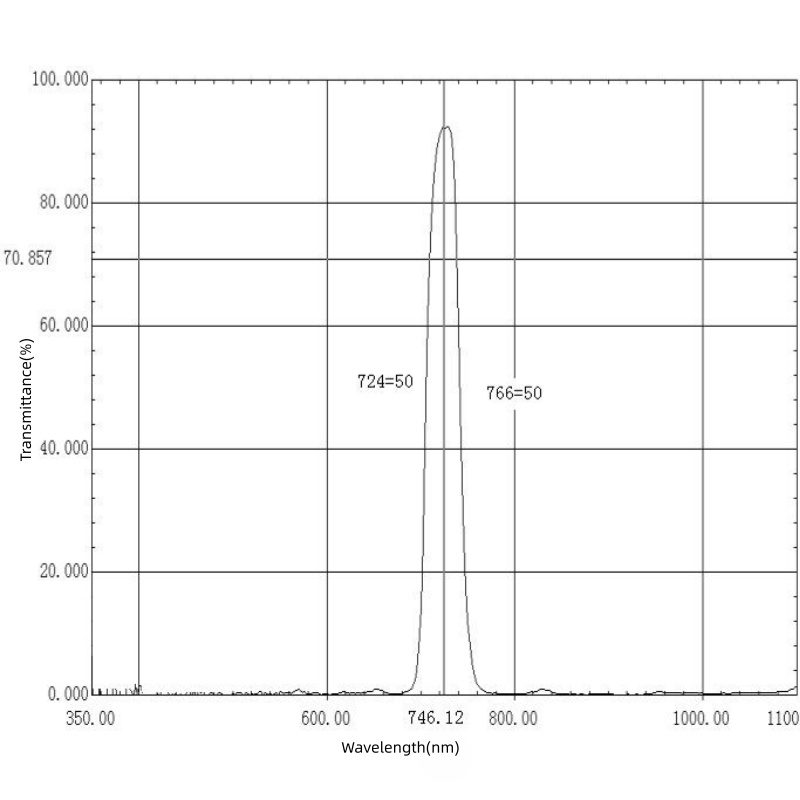

| Example 1: BP750-40nm Spectral Graph measurement |
 |
| Example 2: BP750-45nm Spectral Graph measurement |
What is typical application for 750nm Bandpass Filter?
A 750nm bandpass filter is an optical component that transmits light within a narrow wavelength band centered at 750nm while blocking all other wavelengths.
Typically, the 750nm bandpass filter widely finds application in flow cytometry and fluorescence microscopy for signal-to-noise ratio enhancement.
Besides, in machine vision for background noise reduction, in spectroscopy for precise wavelength selection and additionally in laser systems for separating specific laser lines.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：Firstly,CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, and Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
