Product Descriptions:
| Characteristics: | 735nm Bandpass Filter |
| Type: | Interference type Filter |
| Central Wavelength (CWL): | 735+-5nm |
| Full Width at Half Maximum(FWHM): | 40nm |
| Peak Transmittance(%) : | ≥92% |
| Cut-off depth: | OD2 |
| Shape: | Round, Square or customized. |
| Color: | Dark Red |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm |
| Thickness(mm): | 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Support customized for wavelength from 200-2000nm. | |

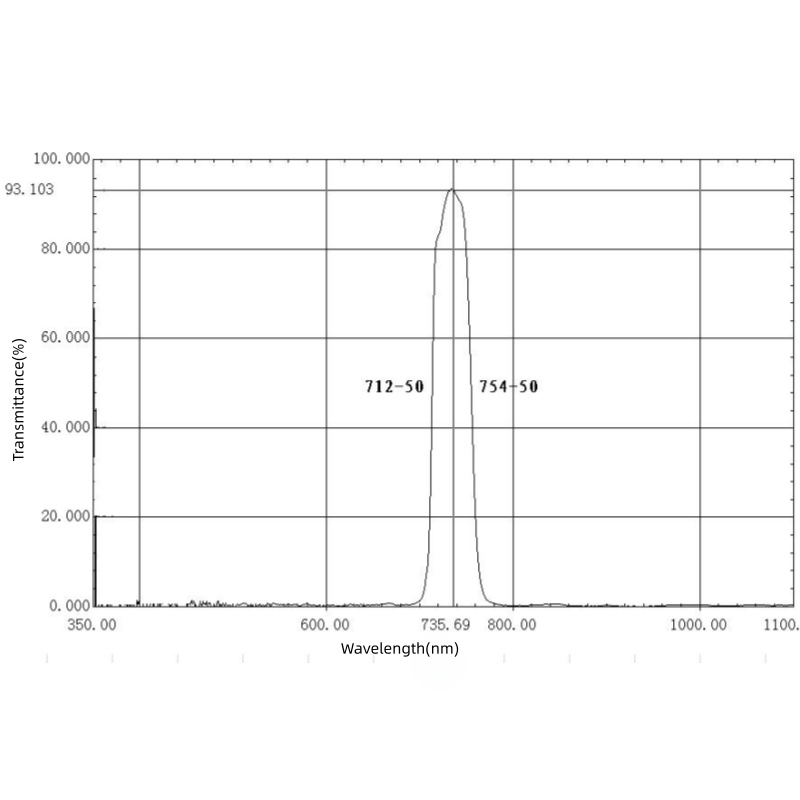

Measured Spectral Graph – 735nm Bandpass filter:
 |
| Picture 1: BP735-40nm Spectral Graph measurement |
What is typical application for 735nm Bandpass Filters?
A 735nm bandpass filter is an optical filter with a center wavelength of 735nm that allows light within a specific wavelength range to pass through while blocking light outside that range.
735nm bandpass filters find wide application in day/night surveillance cameras, intelligent traffic systems, and license plate recognition, where they enable color imaging in daylight and clear NIR illumination at night. They also play a key role in NDVI vegetation monitoring and fluorescence microscopy, detecting specific signals such as BPD photosensitizers.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：Firstly,CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, and Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
