Product Descriptions:
| Characteristics: | 730nm Bandpass Filter |
| Type: | Interference type Filter |
| Central Wavelength (CWL): | 730+-5nm |
| Full Width at Half Maximum(FWHM): | 40nm |
| Peak Transmittance(%) : | >92% |
| Cut-off depth: | OD2 |
| Shape: | Round, Square or customized. |
| Color: | Dark red |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Customized, max. 300x300mm |
| Thickness(mm): | 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Support customized for wavelength from 200-2000nm. | |

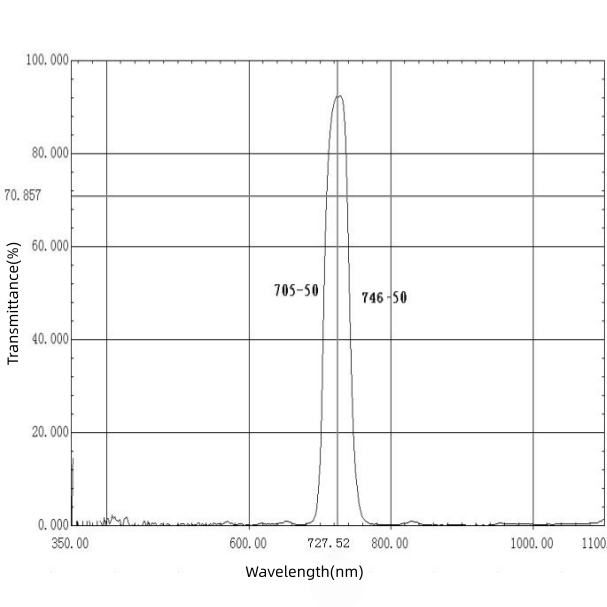

Measured Spectral Graph – 730nm Bandpass filter:
 |
| Picture 1: BP730-40nm Spectral Graph measurement |
What is typical application for 730nm Bandpass Filters?
A 730nm bandpass filter is an optical filter that allows near infrared light centered at 730nm to pass through while blocking light outside that range. Typically, A 730nm bandpass filters are used in Flow cytometry for single-point fluorescence detection. Additionaly, in scientific instrumentation for laser line isolation and analytical chemistry. lastly, in industrial settings for enabling reliable near-infrared imaging, reflectance sensing and machine vision.
What is key parameter when choose for suitable Dual band Filter?
When selecting a Dual Bandpass Filter, normally, the following factors need to be taken into consideration：
- Central Wavelength (CWL)：Firstly, CWL is one of key parameter to designate, and it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance(%): typically, Tp≥90%,higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): it refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher blocking rate will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to define as Interference Filter is angle sensitive. normally, 0° AOI by default, and other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
