Product Descriptions:
| Characteristics: | 725nm Bandpass Filter |
| Type: | Interference type Filter |
| Central Wavelength (CWL): | 725+-5nm |
| Full Width at Half Maximum(FWHM): | 40nm |
| Peak Transmittance(%) : | >90% |
| Cut-off depth: | OD2 |
| Shape: | Round, Square or customized. |
| Color: | Deed red |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Customized, max. 300x300mm |
| Thickness(mm): | 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Support customized for wavelength from 200-2000nm. | |

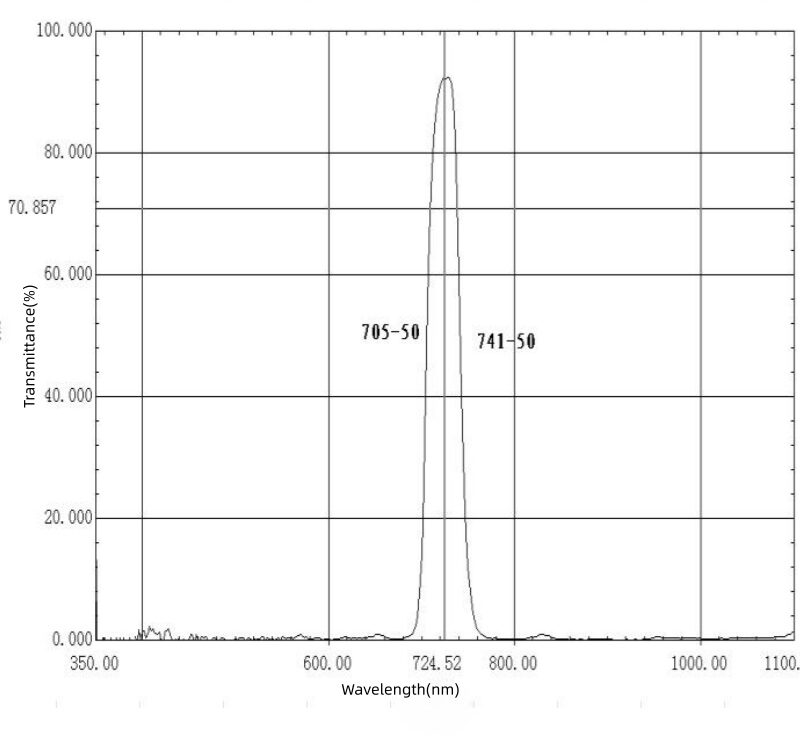

Measured Spectral Graph – 725nm Bandpass filter:
 |
| Picture 1: BP725-40nm Spectral Graph measurement |
What is typical application for 725nm Bandpass Filters?
A 725nm bandpass filter is an optical filter with a center wavelength of 725nm that allows light within a specific wavelength range to pass through while blocking light outside that range.
Typically, the 725nm bandpass filters find extensive use in fluorescence imaging and biological detection, laser spectroscopy analysis, optical communication, environmental monitoring and chemical analysis, astronomical observation, optical sensing.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：Firstly,CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, and Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
