1.Product Descriptions:
| Characteristics: | 410nm Longpass filter |
| Type： | Interference filter |
| Cut-off Wavelength(CWL): | 410nm ±5 nm |
| Peak Transmittance: | >95% |
| Cut-off depth: | OD2-OD3 |
| Surface Quality: | 60/40 scratch-dig |
| Color: | Transparent |
| Shape: | Round, Square, Custom Shape |
| Dimension: | Customized |
| Thickness: | Customized |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified |
| Spectral range: | 350-1100nm |
| Remark: Can do customization per requirement *Customized capability: 380-2500nm, stock for 10nm intervals. **Common for 86x86mm, 80x80mm,other can customized, max. 300x300mm | |

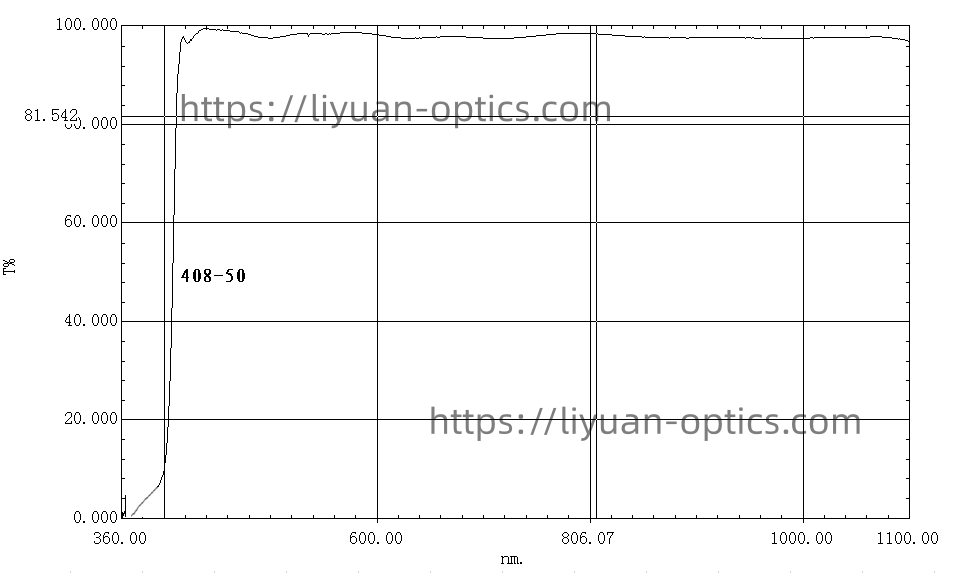

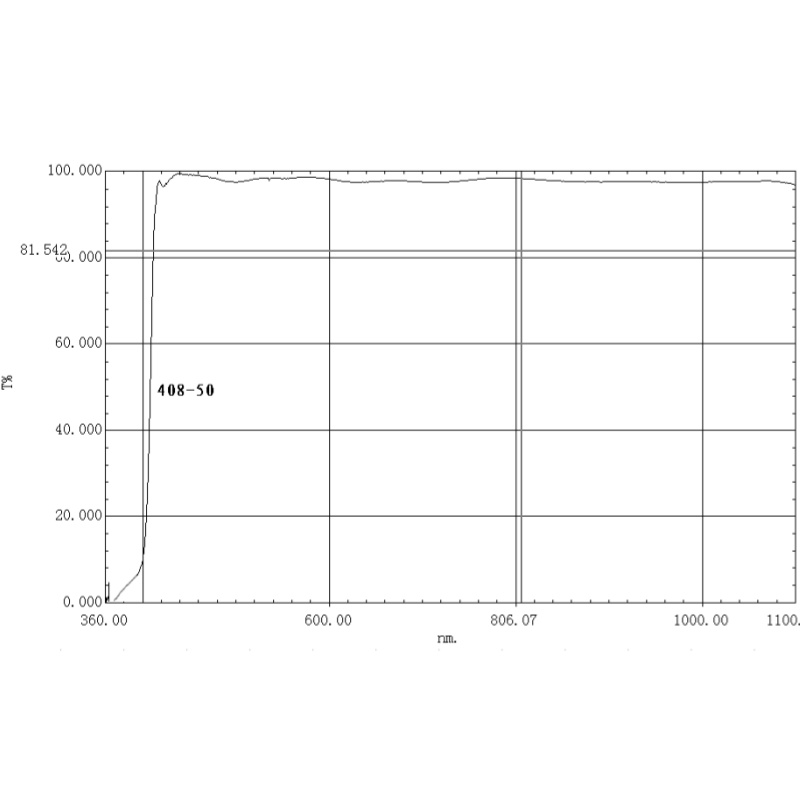

2. Measured Spectral curve
 |
Picture 1: LP410nm Spectral Curve |

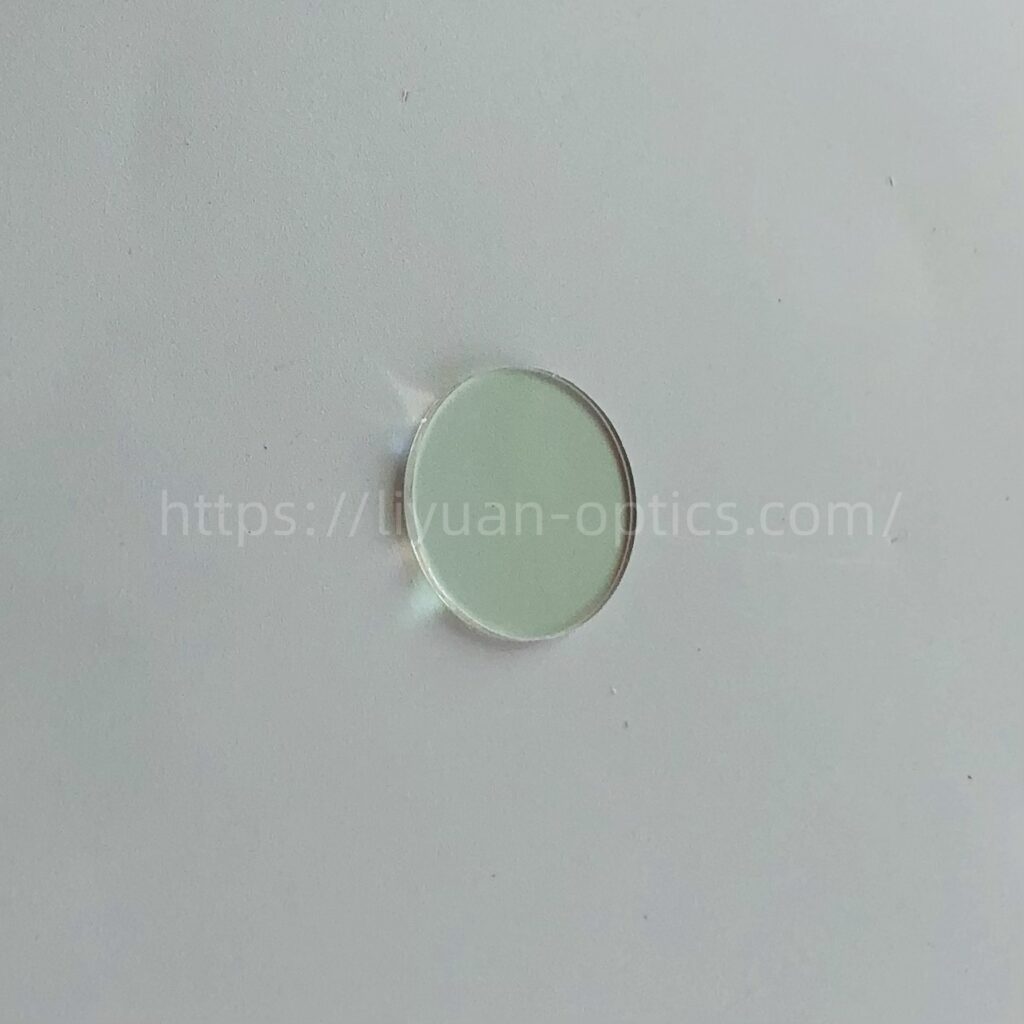

3.What is 410nm longpass filter?
A 410nm longpass filter is an optical filter that transmits light with wavelengths longer than 410nm while blocking or attenuating light with wavelengths shorter than 410nm.
4.What is typical application for 410nm longpass filter?
When selecting a Longpass Filter, normally the following factors need to be taken into consideration：
- Cut-Off Wavelength: it is one of the most important parameters, typically defined as the wavelength transmittance at 50% .
- Average or Peak transmittance: usually average transmittance ≥90%, higher transmittance e.g. 92% or 95% on average or specific single point need to definite and communicate with manufacturer, higher transmittance need to additional AR coating.
- Blocking rate: usually expressed in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement
- Angle of Incidence (AOI): AOI need to be consider as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters and Optical sapphire block. other Longpass filters in stock from Liyuan Optoelectronics: LP430 LP500 LP560 LP600 LP650 LP800…etc.
