1.Product Descriptions:
| Characteristics: | 405nm Bandpass Filter |
| Type: | Interference type |
| Central Wavelength (CWL): | 405+-5nm |
| Full Width at Half Maximum(FWHM): | 10/30nm |
| Peak Transmittance(%) : | BP405-10nm:>90%BP405-30nm:>85% |
| Surface Quality: | 60/40 scratch-dig |
| Optical Density (OD): | OD2-OD3 |
| Color: | Violet-Blue |
| Shape： | Square, Round, Irregular Shape |
| Dimension(mm): | specified** |
| Thickness(mm): | specified*** |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified |
| Remark：
Spectral range:350-1100nm
*Customized capability: 380-2500nm, stock for 10nm intervals.
**Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm
*** Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |
2.Measured Spectral Graph – 405nm Bandpass filter:
 |

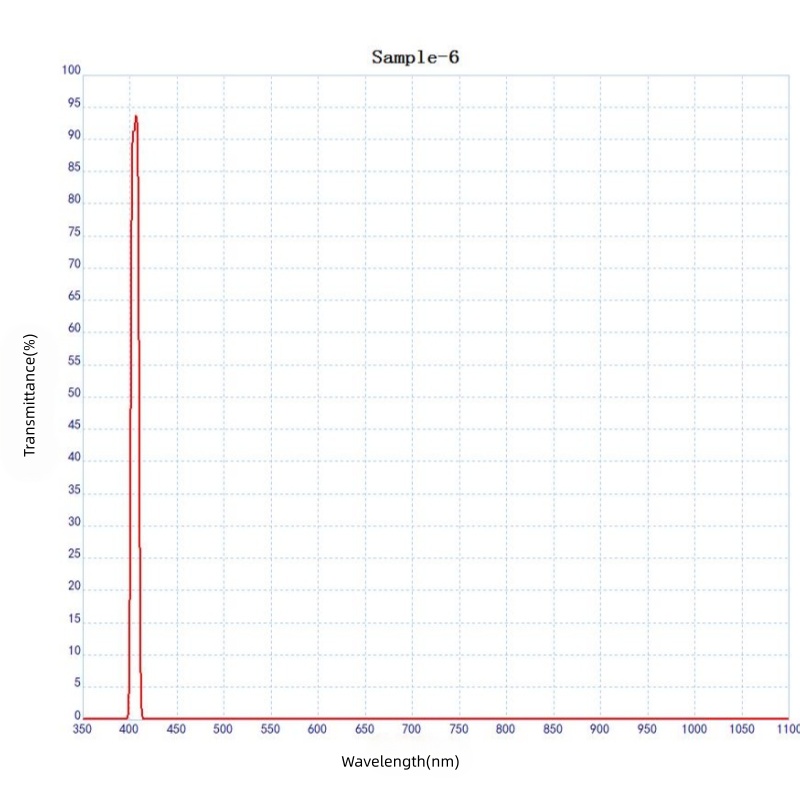

| Picture 1: BP405-10nm Graph measurement |
|

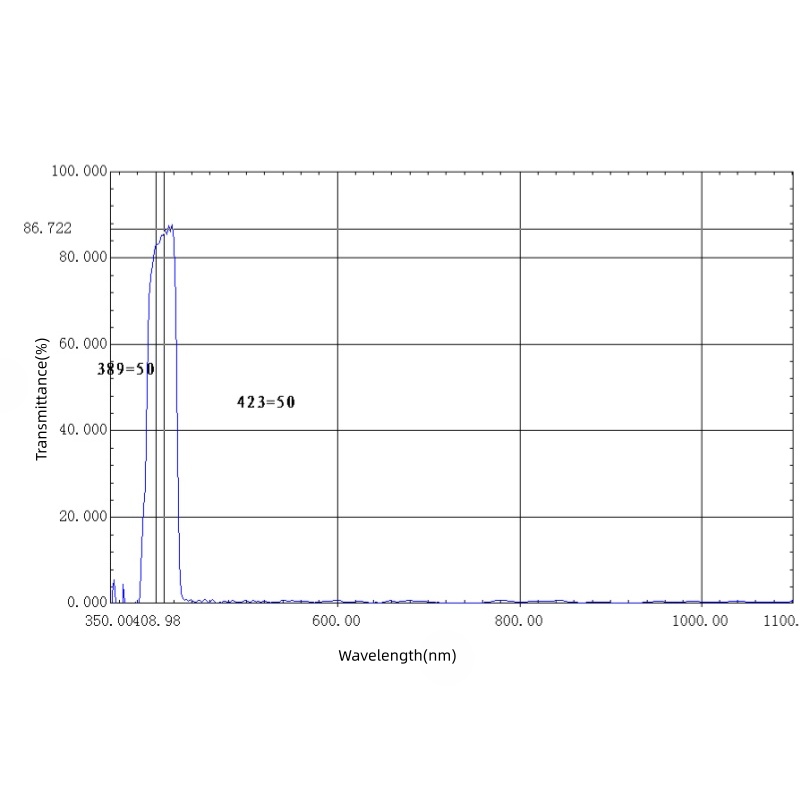

| Picture 1: BP405-30nm Spectral Graph measurement |
3.What is typical application for 405nm bandpass filters?
A 405nm bandpass filter is an optical device that selectively transmits light centered at the 405nm wavelength in the violet-blue region of the spectrum, while blocking light at all other wavelengths. Typical application for 405nm bandpass filters are very broad, include 405nm laser imaging and laser calibration equipment, biochemical fluorescence detection, fluorescence microscopes, UV curing monitoring, UV ink printing inspection, Industrial flaw detection, particle optical sensing, spectroscopic analysis and biochemical diagnostic instruments.
4.What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Narrow Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
Related products:
440nm Bandpass Filter, 440nm CWL, 40/60nm FWHM, OD2,Support customized
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical vacuum technology that apply depositing nano-materials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Besides, Liyuan optoelectronics have been focus on optical coating for more than 17 years ,and the company offer one-stop optical filters solution including
Narrow Bandpass Filters,
IR cut-off Filters,
Longpass Filters,
Shortpass Filters,
Notch Filters,
ND filters,
Star filters and
Optical sapphire block.
Remark: The appearance color of the optical filter is usually determined by the spectral parameters, the interference type filter varies at different angles, and the pictures in this link may have been taken from different angles, so the actual color should be based on the final spectral parameters required！
