Product Descriptions:

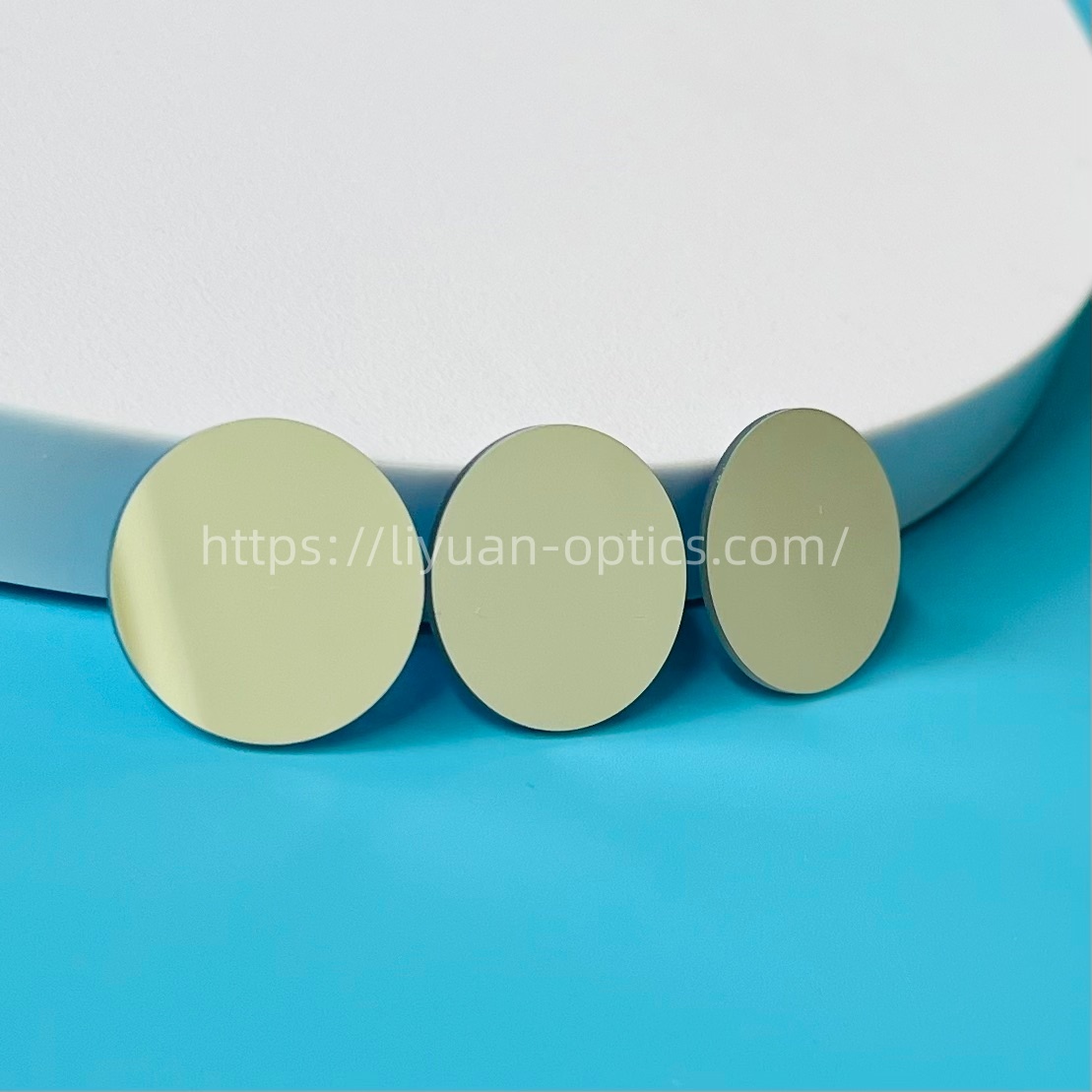

| Characteristics: | 1010nm Bandpass Filter |
| Type: | Interference type |
| Central Wavelength (CWL): | 1010+-5nm |
| Full Width at Half Maximum(FWHM): | 50nm |
| Peak Transmittance(%) : | >92% |
| Surface Quality: | 60/40 scratch-dig |
| Optical Density (OD): | OD2-OD3 |
| Color: | Black |
| Shape： | Square, Round, Irregular Shape |
| Dimension(mm): | specified** |
| Thickness(mm): | specified** |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified |
| Remark：
Spectral range:350-1100nm
*Customized capability: 380-2500nm, stock for 10nm intervals.
**Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm
*** Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. |

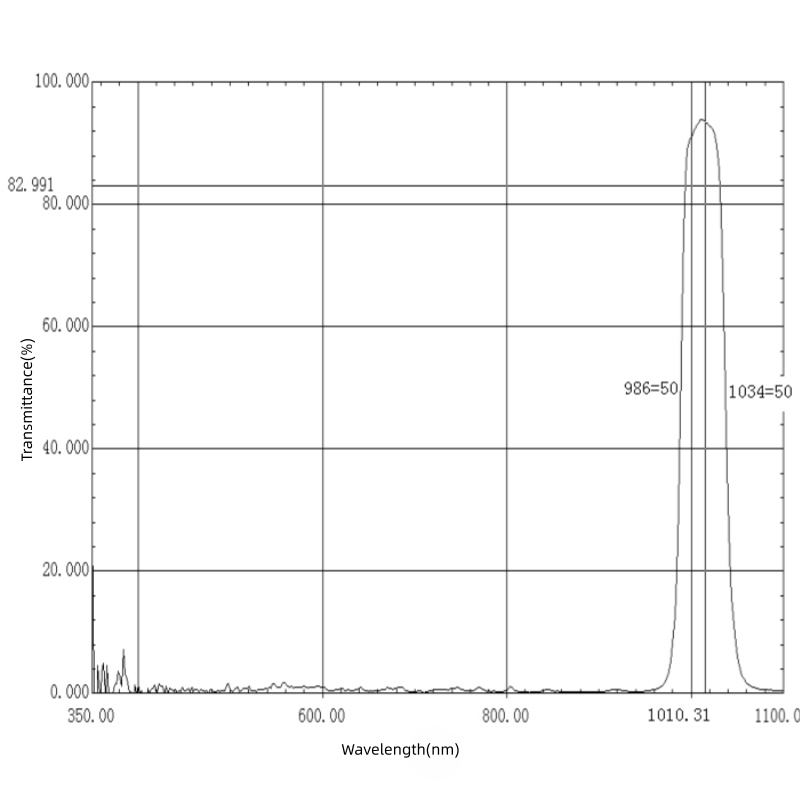

Measured Spectral Graph – 1010nm Bandpass filter:
 |
| Picture 1: BP1010-50nm Spectral Graph measurement |
What is typical application for 1010nm bandpass filter?
A 1010 nm bandpass filter is a precision optical component that only allows light within a narrow band centered at 1010nm in the near-infrared range to pass through, while blocking all ultraviolet, visible light and other out-of-band wavelengths. Typical applications for 1010nm bandpass filter is very broad, include near-infrared laser systems, spectral analysis and optical sensing. It also applies to industrial photoelectric detection, laser measurement and scientific research instruments, effectively filtering unwanted light interference to improve signal purity and detection accuracy.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Narrow Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
