Product Descriptions:
| Characteristics: | 900nm Bandpass Filter |
| Type: | Interference type Filter |
| Central Wavelength (CWL): | 900+-5nm |
| Full Width at Half Maximum(FWHM): | 40/60/100/310nm |
| Average Transmittance(%) : | >92% |
| Cut-off depth: | OD2 |
| Shape: | Square, Round, Irregular Shape |
| Color: | Black |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | specified** |
| Thickness(mm): | specified*** |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Spectral range:350-1100nm *Customized capability: 380-2500nm, stock for 10nm intervals. **Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm *** Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc. | |
Spectral measured graph – 900nm Bandpass filter:
 |

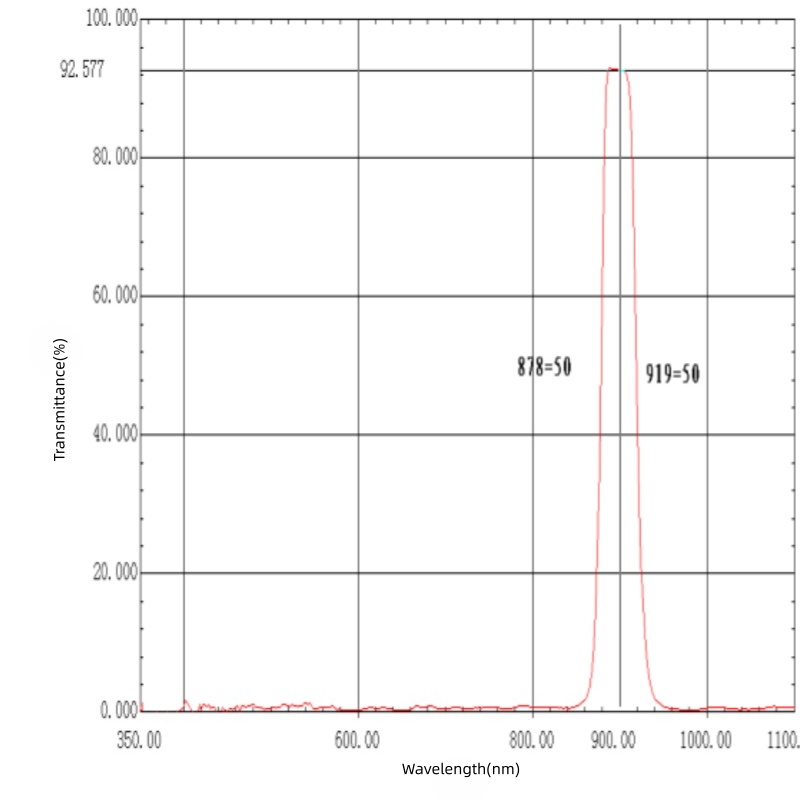

| Example 1: BP900-40nm Spectral Graph measurement – 880-920nm infrared bandpass filter |
 |

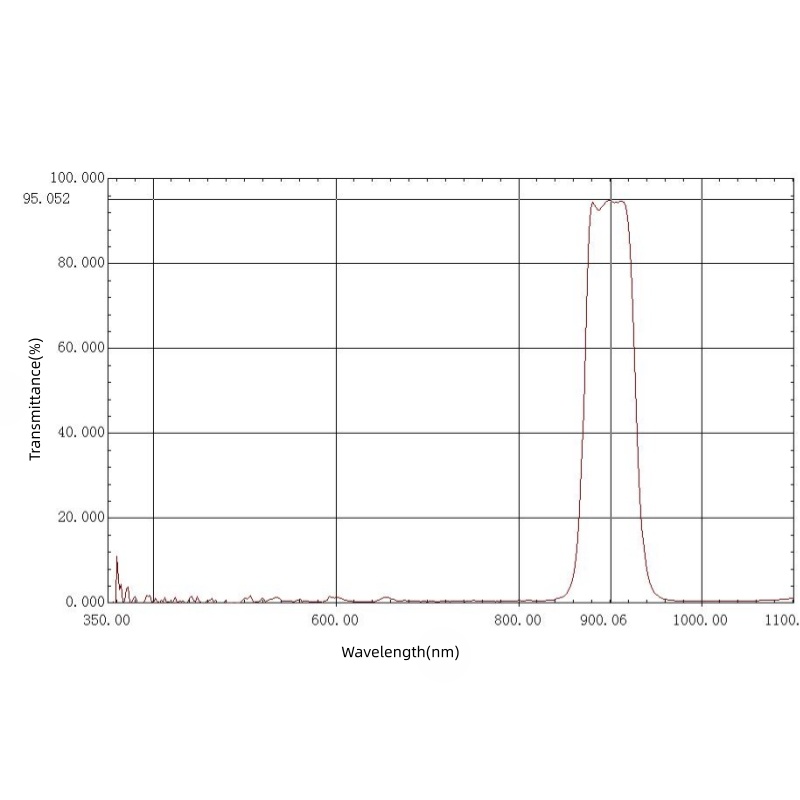

| Example 2: BP900-60nm Spectral Graph measurement – 870-930nm infrared bandpass filter |
 |
| Example 3: BP900-100nm Spectral Graph measurement – 800-900nm infrared bandpass filter |
 |

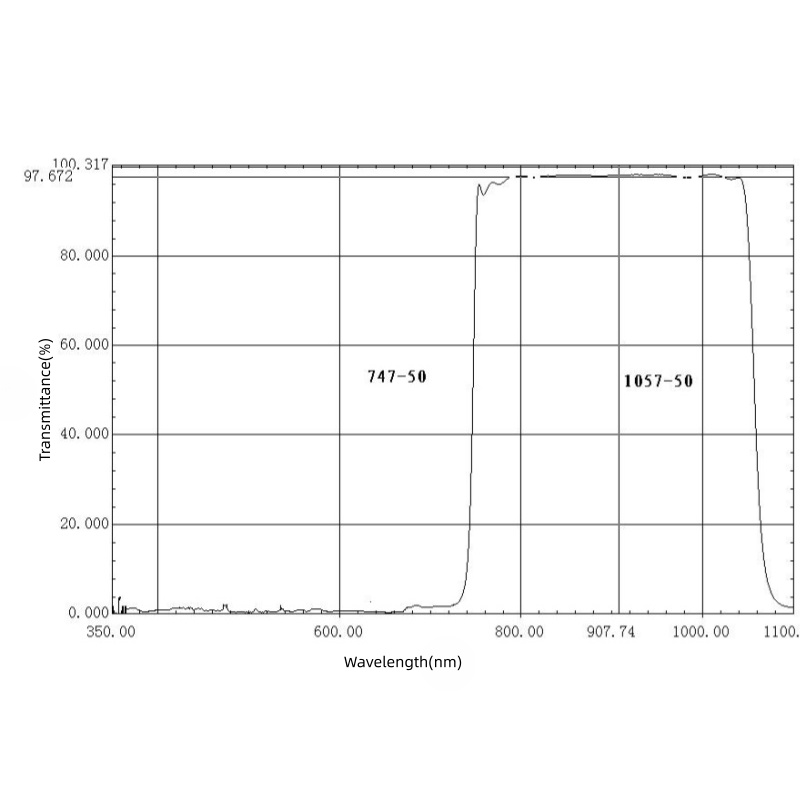

| Example 4: BP900-310nm Spectral Graph measurement- 750-1060nm infrared bandpass filter |
What is typical application for 900nm Bandpass Filter?
A 900nm bandpass filter is a precision optical element for isolating a specific spectral band centered at 900nm in the near-infrared region, with high rejection of all out-of-band wavelengths. It finds applications in laser characterization, NIR spectroscopy. Besides, it also support gas sensing, fluorescence microscopy, and machine vision.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：Firstly,CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, and Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
