1.Product Descriptions:
Characteristics: | UV210 filter |
Type: | Interference type |
Central Wavelength (CWL): | 210nm |
Full Width at Half Maximum(FWHM): | Refer to spectral measure graph |
Spectral range(nm): | 200-1100nm |
Peak Transmittance(%) : | >30% |
Surface Quality: | 60/40 scratch-dig |
Optical Density (OD): | OD2 |
Color: | Silver |
Shape： | Circular |
Dimension(mm): | Unmounted: Dia.24*2mm Mounted: Dia.25.4*6mm,D25*3.5mm |
Thickness(mm): | Filter glass: 2mm Mounted frame:6mm,3.5mm |
Substrate: | Optical Glass |
Remark: Support customized for wavelength from 200-2000nm. | |

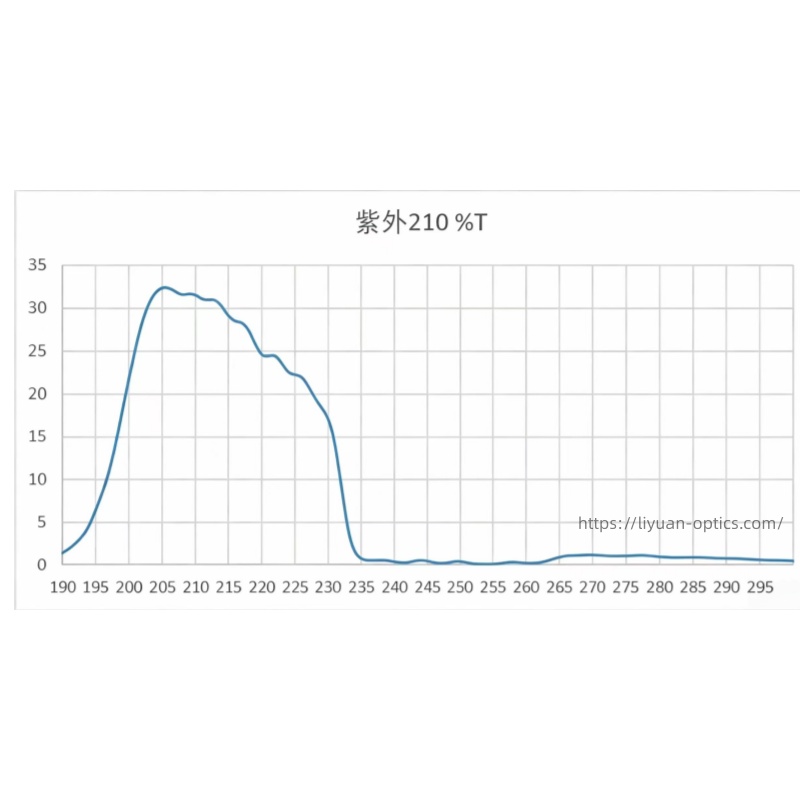

2.Spectral measurement graph
 |
Picture 1:UV210, 200-230nm UVC transmittance optical filters |
Related products:
ZWB1 UV Filter, Selective absorption type, 313nm Ultraviolet Glass
High Transmittance UV Filters, Quartz Glass, UV330-495nm Optical Bandpass Filters
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical vacuum technology that apply depositing nano-materials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment, which coating layer is firm and has good tightness, and small bandwidth drift. The company have been focus on optical coating for more than 17 years ,and the company offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass Filters, Shortpass Filters, Notch Filters, ND filters, Star filters and Optical sapphire block.
Remark: Because the interference type filter varies its performance at different angles, the spectral parameters usually determine its appearance color; moreover, the pictures in this link may originate from various shooting angles, so the actual color should therefore rely on the final spectral parameters required as the standard.
