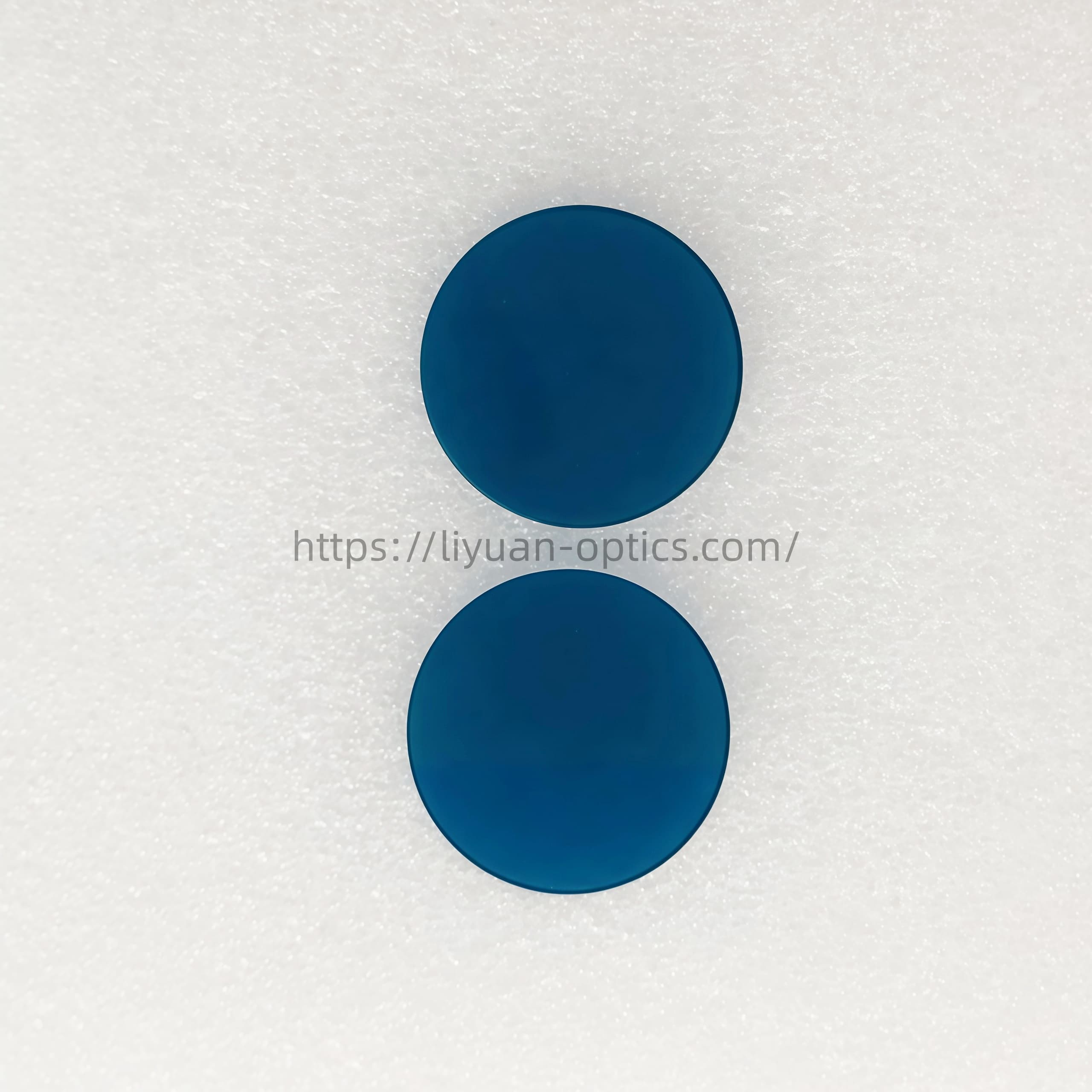

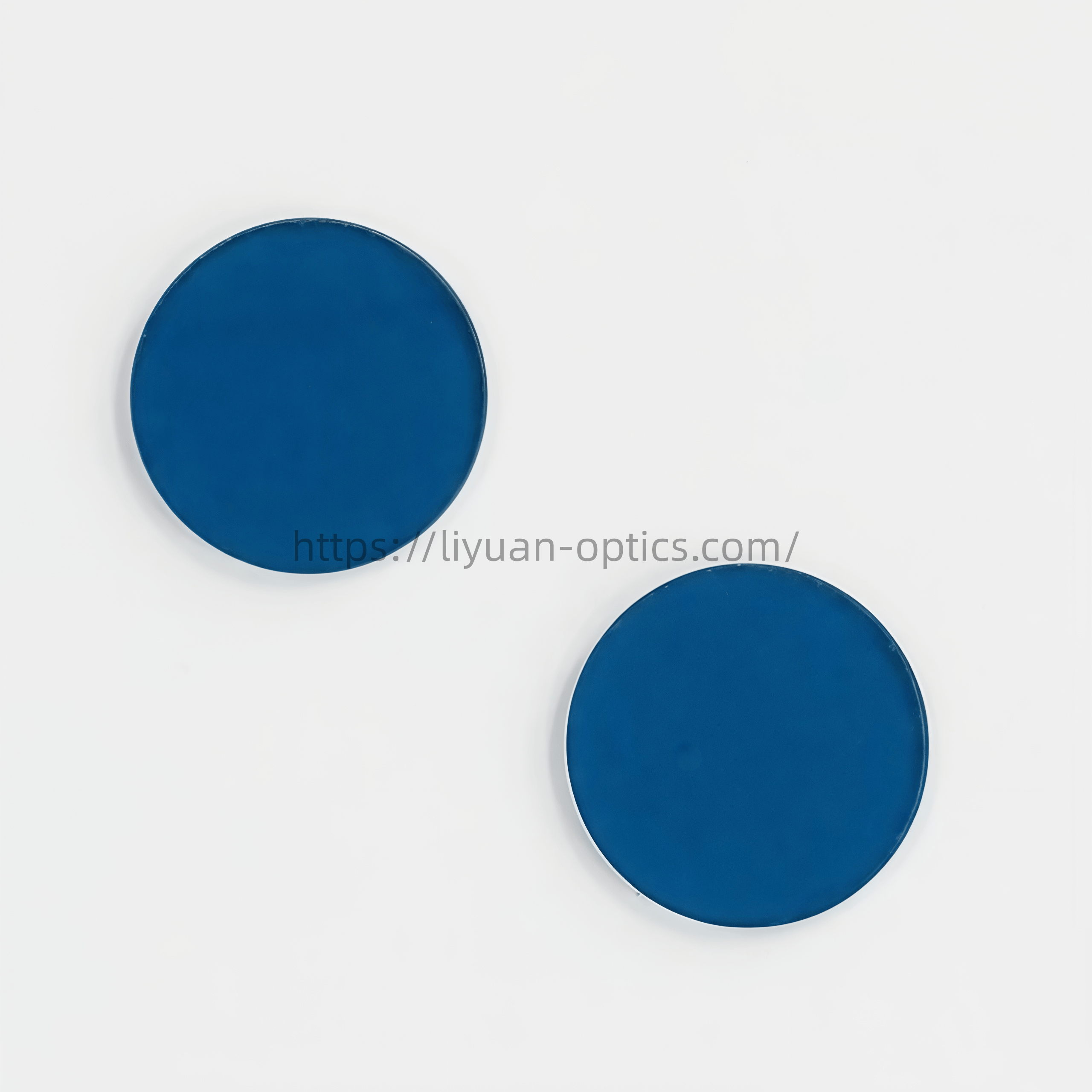

Product Descriptions:
| Characteristics: | QB9 QB10 QB11 QB12 QB13 Blue Glass | | Type: | Selective Absorption Type Glass | | Color: | Blue | | Minimum Transmissivity(%): | See Technical Requirements Table below | | Shape : | Round or customized* | | Dimension(in mm): | Customized** | | Thickness(mm): | 2mm or Customized*** | | Material: | QB9 QB10 QB11 QB12 QB13 Blue Glass | | Spectral range: | 380-1100nm | Remark:
* Shape: Rectangle, Square or customized.
**Common for 86x86mm, 80x80mm, max. 300x300mm
** Optional thickness: 0.21、0.3、0.55、0.7、1.0、1.1、2.0、3.0mm…etc. |
|
Spectral Graph for QB Blue Glass :
 |
| Picture 1: QB9-QB13 Blue Glass Spectral Graph |
QB Blue Glass Characteristics:
| 1. Basic Characteristics Table |
| Type | Thickness (mm) | A[2856K] | D65 | Chemical Stability | ND | α×10−7 (/∘C) | Tg (∘C) | Ts (∘C) | S |
| x | y | Y | x | y | Y | DA | DW |
| QB9 | 2 | 0.187 | 0.391 | 14.8 | 0.156 | 0.256 | 20.3 | 1 | 2 | 1.524 | 89 | 460 | 532 | 2.56 |
| QB10 | 2 | 0.409 | 0.417 | 74.4 | 0.283 | 0.324 | 76.6 | 1 | 2 | 1.529 | 84 | 540 | 606 | 2.63 |
| QB11 | 2 | 0.328 | 0.412 | 52 | 0.226 | 0.29 | 59.1 | 1 | 2 | 1.514 | 93 | 477 | 550 | 2.57 |
| QB12 | 2 | 0.269 | 0.406 | 36.2 | 0.194 | 0.271 | 44.2 | 1 | 2 | 1.517 | 91 | 506 | 572 | 2.59 |
| QB13 | 2 | 0.189 | 0.377 | 17.3 | 0.157 | 0.242 | 23.7 | 1 | 2 | 1.522 | 90 | 490 | 555 | 2.61 |
| 2. Technical Requirements Table |
| Type | Thickness (mm) | 400 (nm) | 480 (nm) | 640 (nm) | 700 (nm) | 700 (nm) | 1000 (nm) |
| QB9 | 2 | ≥10.0 | ≥36.5 | | ≤1.0 | | |
| QB10 | 2 | ≥76.0 | | | | 23.0~31.0 | ≤5.0 |
| QB11 | 2 | ≥80.0 | ≥83.8 | | | 5.5~11.6 | |
| QB12 | 2 | ≥66.7 | ≥76.4 | | | ≤0.7 | |
| QB13 | 2 | ≥58.0 | ≥51.5 | ≤0.2 | | | |
Comparative Type List Colored Filter Glass:
| Model | Bubble | Stiripe | Stress |
| QB9 | C-D | 4 | 3 |
| QB10 | D | 3C | 3 |
| QB11 | C-B | 3C | 3 |
| QB12 | C-B | 3C | 3 |
| QB13 | C-B | 3C | 3 |
What is typical application for QB9-QB13 Blue glass?
| Application Area | Specific Use Cases | Primary Function |
| Photography & Videography | Photographic filters for color adjustment, white balance correction and artistic effect creation | Selectively absorb and transmit specific wavelengths, adjust color saturation and modify white balance |
| Medical Equipment | Components for medical analyzers and beauty equipment | Filter out harmful or interfering light wavelengths, improve treatment effectiveness and measurement accuracy |
| Lighting & Decoration | Lighting fixtures and scene lighting filters, decorative glass for display cases and picture | Transmit blue/cyan light to create a tranquil or elegant atmosphere and protect items inside display cases from UV damage |
| Safety & Protection | Protective screens for safety devices | Absorb harmful light, reduce eye exposure to harmful light, and protect items and human eyes from light |
| Consumer Electronics | Camera components for mobile phones | Filter out interfering light, improve imaging clarity of camera modules, reduce reflection losses |
What is the difference between Color Filter Glass and Interference coated filter glass?
Color Filter Glass is an optical filter made by doping molten glass with metal oxides or rare-earth elements, causing it to absorb specific wavelengths and transmit others, which gives it its color. Interference Coated Filter Glass is a glass substrate with thin-film layers that uses optical interference to selectively transmit or reflect specific wavelengths. In short, interference filters are for high-precision applications, while color filter glass is often used for simpler, cost-effective filtering.
| (1) Interference Filters | (2) Colored Glass Filters |
 |  |
| Interference Filters, or thin-film filters, work by using wave interference. Multiple ultra-thin layers on a substrate are designed to reflect unwanted wavelengths, while constructively let the desire wavelengths to pass through. | Colored Glass Filters work by absorption. Dyes or metal ions inside the glass absorb unwanted light colors, allowing only the desired color light to pass through. They are more simple and only some certain wavelengths. |
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters and Optical sapphire block.
Shenzhen Hengda Liyuan Optoelectronics is focus on optical coating and optical filters solution, can provide but cut-off type glass and selective Absorption type glass.
- Cut-off Type Glass: Ultraviolet Glass, Golden(Yellow) Glass, Red Glass, Infrared Glass
- Selective Absorption Type Glass: Ultraviolet Glass, Violet Glass, Green Glass, Golden(Yellow)Glass, Red Glass, Infrared Glass, Protective Glass and Heat absorbing Glass.
