Product Descriptions:
| Characteristics: | 935nm Bandpass Filter |
| Type: | Interference type |
| Central Wavelength (CWL): | 935+-5nm |
| Full Width at Half Maximum(FWHM): | 40nm |
| Peak Transmittance(%) : | >92% |
| Cut-off depth: | OD2 |
| Shape: | Round, square or customized |
| Color: | Silver |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm |
| Thickness(mm): | 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc. |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Customized capability: 200-2000nm. | |

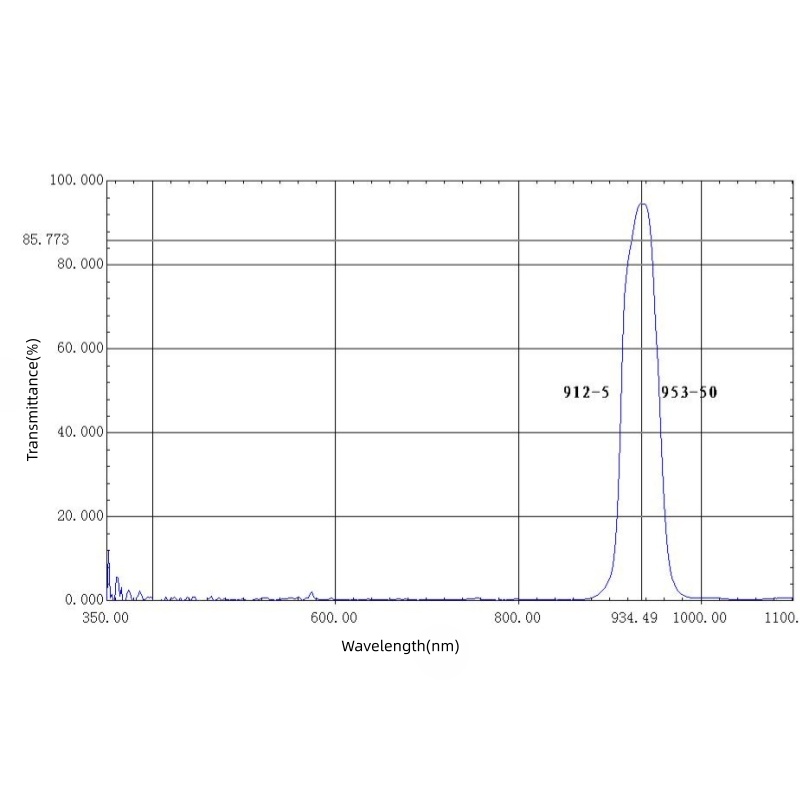

Spectral measurement graph
 |
| Picture 1: BP935-40nm Spectral measurement graph |
What is typical application for 935nm Bandpass Filters?
A 935nm bandpass filter is a specialized optical component that selectively transmits light centered at the 935nm wavelength while blocking other spectral regions.
Typically, the 935nm infrared bandpass filters find primary use in near-infrared spectroscopy, fluorescence microscopy, and flow cytometry, in these applications, they isolate the 935nm wavelength to enable precise optical analysis. Additionally,They also serve in machine vision, biomedical imaging, and laser-based systems.
What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Narrow Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
