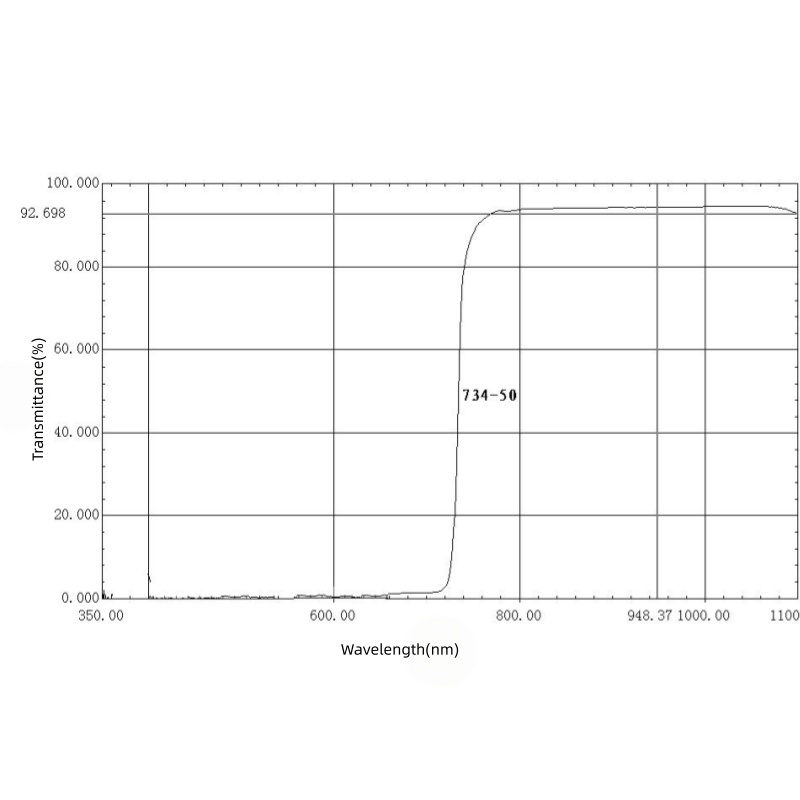

Remark：Spectral range:350-1100nm*Size customized: 86x86mm, 80x80mm, other can customized, max. 300x300mm**Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc.*** Available for: Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified material.
What is typical application for Black Glass Substrate 740nm Longpass Filter?
A black glass substrate 740nm longpass filter is an optical component that uses black glass material as its substrate and achieves wavelength selection through the absorption properties of the material itself. Its function is to allow deep red and near-infrared light with wavelengths longer than 740nm to pass through, while blocking visible light below 740nm through absorption. The black glass substrate 740nm longpass filter is applicable to a variety of scenarios, including security surveillance, infrared lighting systems, stage and special effects lighting, basic spectroscopic measurements, and industrial sensor applications.
4.What is key parameter when choose for right Longpass Filter?
When selecting a Longpass Filter, normally the following factors need to be taken into consideration：
Cut-Off Wavelength: it is one of the most important parameters, typically defined as the wavelength transmittance at 50% .
Average or Peak transmittance: usually average transmittance ≥90%, higher transmittance e.g. 92% or 95% on average or specific single point need to definite and communicate with manufacturer, higher transmittance need to additional AR coating.
Blocking rate: usually expressed in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement
Angle of Incidence (AOI): AOI need to be consider as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nano materials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters and Optical sapphire block.
other Longpass filters in stock from Liyuan Optoelectronics: LP430 LP500 LP560 LP600 LP650 LP800, etc.
