1.Product Descriptions:
| Characteristics | 6-Line Star Filter |
| Type: | Line Star Filter |
| Number of Rays： | 6 |
| Peak Transmittance(%) : | 90% |
| Cut-off depth: | OD2-OD3 |
| Shape: | Round, Square, Custom Shape |
| Color: | Transparent |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | Specified |
| Thickness(mm): | specified |
| Substrate: | optical glass |
| Remark： (1) Size customized: 86x86mm, 80x80mm, other can customized, max. 300x300mm (2) Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc. | |
2.What is a 6-Line star filter, cross screen filter?

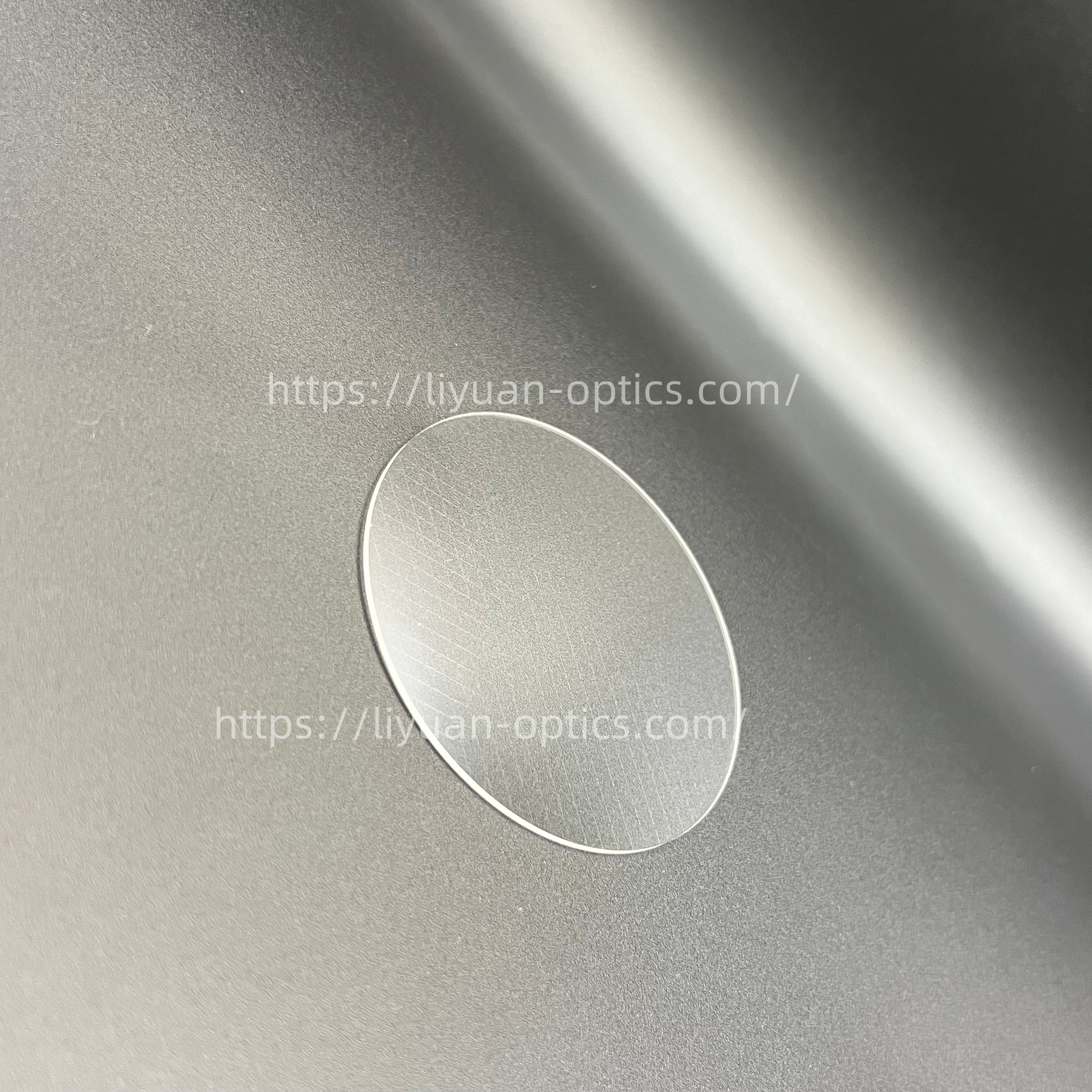

A 6-line star filter also called a 6-point star filter, it is an optical lens filter with a finely etched surface pattern, and create a six-pointed starburst effect from bright point light sources.
3.What is typical application for negative 6-line star filters？
When selecting Star filters, the number of points (Lines) will be one of key parameter to be designated, with a line density (groove frequency) determines the sharpness and length of the star rays.
5.how a 6-Line Star Filter works？
The surface of a star filter features precisely etched or embossed micro-grooves arranged in orthogonal patterns. When a point light source passes through the filter, light diffracts along the edges of these grooves, stretching into rays perpendicular to the groove direction, thereby producing the star effect.
