1.Product Descriptions:
| Characteristics: | 540nm Bandpass Filter |
| Type: | Interference type |
| Central Wavelength (CWL): | 540+-5nm |
| Full Width at Half Maximum(FWHM): | 45/90nm |
| Peak Transmittance(%) : | >90% |
| Cut-off depth: | OD2-OD3 |
| Shape: | Round |
| Color: | Green |
| Surface Quality: | 60/40 scratch-dig |
| Dimension(mm): | specified** |
| Thickness(mm): | specified*** |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified. |
| Remark: Spectral range:350-1100nm *Customized capability: 380-2500nm, stock for 10nm intervals. **Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm *** Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm, etc. | |
2.Measured Spectral Graph – 540nm Bandpass filter:
 |

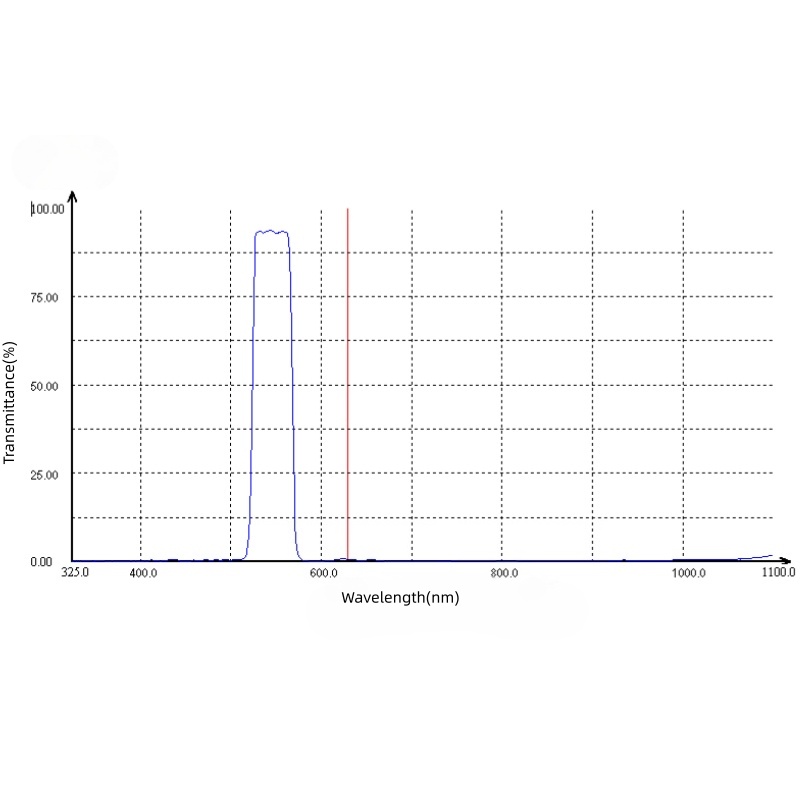

| Picture 1: BP540-45nm Spectral Graph measurement |
 |
| Picture 2: BP540-90nm Spectral Graph measurement |
3.What is typical application for 540nm bandpass filters?
A 540nm bandpass filter is an optical filter that selectively transmits light within a specific wavelength range centered around 540nm, while blocking light outside this range. 540nm bandpass filters are mainly used in optical detection, biological analysis, and precision measurement. They are essential for fluorescence microscopy and flow cytometry, enabling clear cellular imaging. They also support environmental monitoring, gas analysis, machine vision, color sorting, and optical sensors by reducing ambient light interference and improving signal-to-noise ratio, while ensuring stable green light output in laser and spectral analysis applications by blocking unwanted wavelengths.
4.What are key parameters when choose for a suitable Bandpass Filter?
When selecting a Narrow Bandpass Filter, normally the following factors need to be taken into consideration：
- Central Wavelength (CWL)：CWL is one of key parameter to designate first, it refer to the central wavelength at stable high transmission rate passband.
- Peak or Average Transmittance: typically ≥90%, Higher transmittance might need Anti-reflective(AR) coating.
- Full width at half maximum (FWHM): FWHM refer to the interval between the two wavelength points where the transmittance rate reaches 50%.
- Blocking rate: usually in terms of optical density(OD), OD2-OD3 for standard and higher will be OD4-OD6 per requirement.
- Angle of Incidence (AOI): AOI need to be considered as Interference Filter is angle sensitive, 0° AOI by default, other AOI e.g. 30/45° need to be specified.
- Physical and environmental requirement: Substrate type, dimensions and thickness, surface quality, and environmental durability.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters and Optical sapphire block.
Other typical Bandpass filters in stock from Liyuan Optoelectronics include BP810 BP820 BP830 BP840 BP850 BP860 BP870 BP880 BP890 BP…etc.
