A dielectric coating is a type of optical interference thin film made of insulating, low-absorption materials on optical filters substrates. Optical filters with dielectric coating films are commonly called as dielectric coating filter. and it‘s one type of the interference filters. Dielectric coating films feature low absorption, selective reflection, high coating durability and wide range of parameters. Therefore, they can flexibly achieve selective transmission or reflection of specific wavelengths or wavebands. These advantages make them one of the most common coating types in modern optical thin-film technology.
How does the Dielectric Coating Filters work?
The dielectric coating typically consists of multiple layers of transparent dielectric coating materials with different refractive indices, stacked alternately. When light passes through these layers, partial transmission and reflection occur at each interface, and all the reflected or transmitted light beams interfere with each other.Through constructive interference of the reflected light, the coating reflects back unwanted wavelengths, while through destructive interference, it transmits the desired pass wavelengths. The thickness and refractive index of each layer are based on the requirements for the define transmitted and reflected light .
What are the common dielectric coating materials?
The key characteristics of dielectric coating materials include transparency, refractive index, coating durability and resistance to high-energy radiation. Based on refractive index, high-index materials typically include titanium dioxide (TiO₂), titanium pentoxide (Ti₂O₅), etc. and Low-index materials typically include silicon dioxide (SiO₂), magnesium fluoride (MgF₂), and so on. In practice, the dielectric coatings of titanium dioxide and silicon dioxide are called as hard coatings, while those made of magnesium fluoride call soft coatings.
What are the common types of Dielectric coating filters?
The dielectric coating films find wide application in various optical filters, such as high-transmission bandpass filters and Cut-off filters. Common types include narrowband filters, bandpass filters, notch filters, long-pass filters, short-pass filters, IR-cut filters and so on.
Here are some pictures of dielectric coating filters：
 |  |

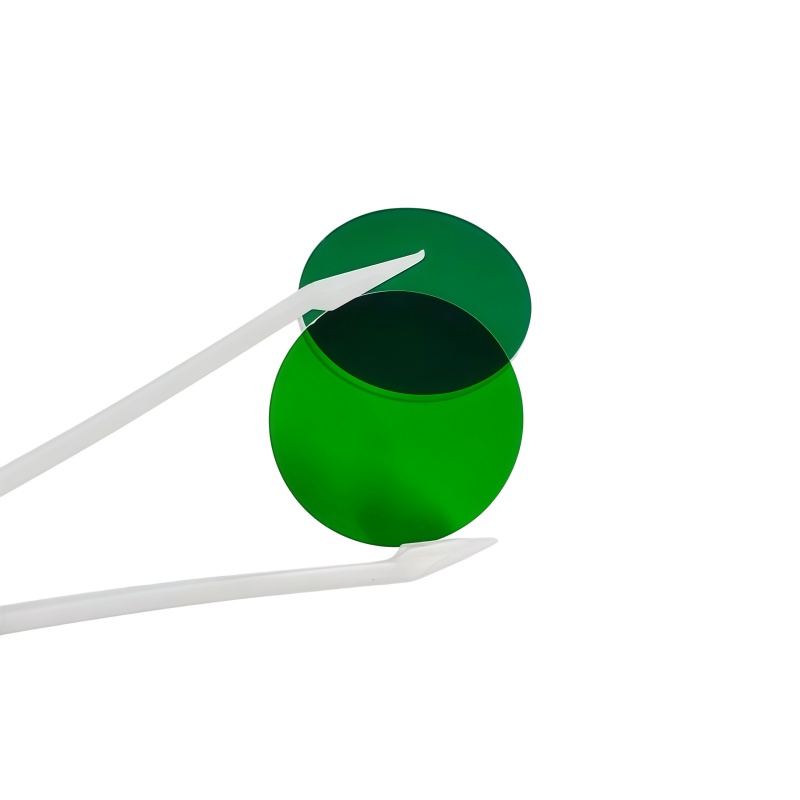

| 540-45nm Bandpass Filter | 610nm Longpass Filter |
 |  |
| Notch Filter | IR650nm Shortpass Filter |
