Product Descriptions:
| Characteristics: | 800nm Bandpass Filter |
| Type: | Bandpass Filter |
| Central Wavelength (CWL): | 800+-5nm or specified* |
| Full Width at Half Maximum(FWHM): | 30nm or specified |
| Peak Transmittance(%) : | >90% or specified |
| Surface Quality: | 60/40 scratch-dig or specified |
| Optical Density (OD): | OD2-OD4 or specified |
| Color: | Black |
| Shape： | Square, Round, Irregular Shape |
| Dimension(mm): | specified** |
| Thickness(mm): | specified** |
| Substrate: | Ultra-clear glass,K9,BK7,B270,D2637T, Quartz Glass(Fused Silica) or other specified |
| Remark： Spectral range:200-1200nm *Customized capability: 380-2500nm, stock for 10nm intervals. **Common for 86x86mm, 80x80mm, other can customized, max. 300x300mm *** Thickness available: 0.21、0.3、0.55、0.7、1.0、1.1、1.5、1.8、2.0、3.0mm…etc. | |
Measured Spectral Graph – 800nm Bandpass filter:
 |

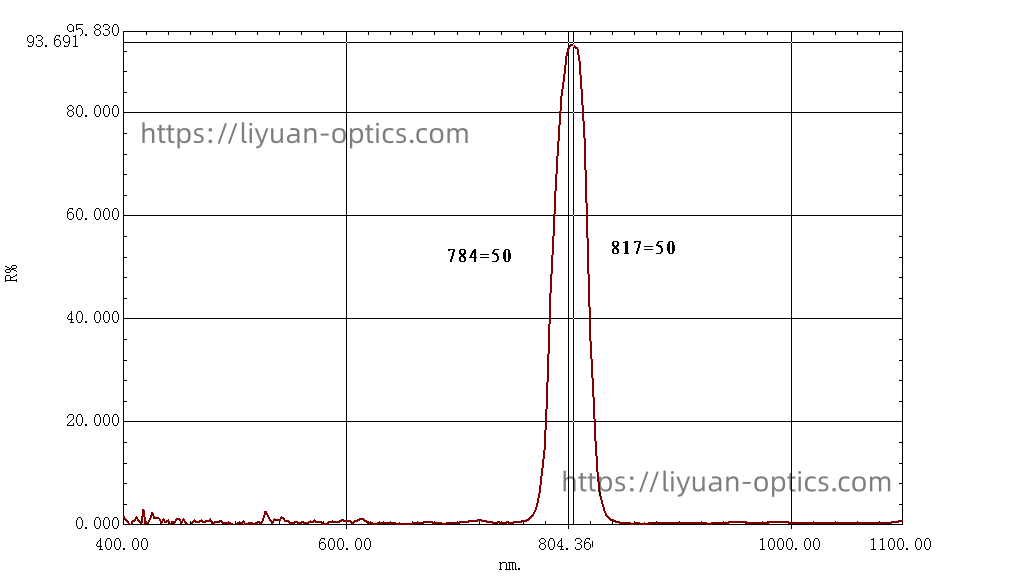

| Picture 1: BP800-30nm Spectral Graph measurement |
What is 800nm bandpass filters?
An 800nm bandpass filter is a precision optical element that selectively transmits light centered at 800 nm (near-infrared, NIR) and blocks all wavelengths outside its passband.
What is typical application for 800nm bandpass filters?
Typical application for 800nm bandpass filters is very broad, including near-infrared sensing and detection, laser signal filtering & laser equipment, industrial machine vision & inspection, biometric recognition devices, spectral analysis instruments.
What is key parameter when choose for right bandpass filter?
When selecting Bandpass Filters, you need to consider the following key factors. First and foremost, center wavelength accuracy, which determines the ability to screen specific wavelengths of light. Secondly, full width at half maximum (FWHM), which defines the wavelength range allowed to pass through. Thirdly, transmittance requirements, reflecting the transmission efficiency for target wavelengths. Fourth, blocking depth and range, indicating the ability to block non-target wavelengths. Fifth, angle of incidence (AOI), which affects filter performance. Finally, substrate and physical specifications — common substrate materials include K9/BK7, fused silica, and others.
Shenzhen Hengda Liyuan Optoelectronics introduced advanced optical technology that apply depositing nanomaterials through ion-assisted evaporation onto a multilayer hard film in a high vacuum environment which coating layer is firm and has good tightness, and small bandwidth drift. Liyuan optoelectronics have been focus on optical coating for more than 17 years and offer one-stop optical filters solution including Narrow Bandpass Filters, IR cut-off Filters, Longpass & Short Filters, Notch Filters, ND filters, Star filters and Optical sapphire block.
Other typical Bandpass filters in stock from Liyuan Optoelectronics include BP810 BP820 BP830 BP840 BP850 BP860 BP870 BP880 BP890 BP…etc.
